STR-A6063HZ, STR-A6069MZ Off-Line PWM Controllers

STR-A6063HZ Description

Off-Line PWM Controllers with Integrated Power MOSFET STR-A6000MZ/HZ Series Data Sheet .
The STR-A6000MZ/HZ series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

STR-A6063HZ Features

* Current Mode Type PWM Control
* Brown-In and Brown-Out Function
* Soft Start Function
* Auto Standby Function No Load Power Consumption < 25mW
* Operation Mode Normal Operation

STR-A6063HZ Applications

* White goods
* Office Automation Equipment
* Audio Visual Equipment
* Industrial Equipment
* Other SMPS STR-A6000MZ/HZ-DSE Rev.1.4 SANKEN ELECTRIC CO. , LTD. 1 Jan. 13, 2022 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 2014 STR-A6000MZ/HZ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR-A6063HZ, STR-A6069MZ. Please refer to the document for exact specifications by model.

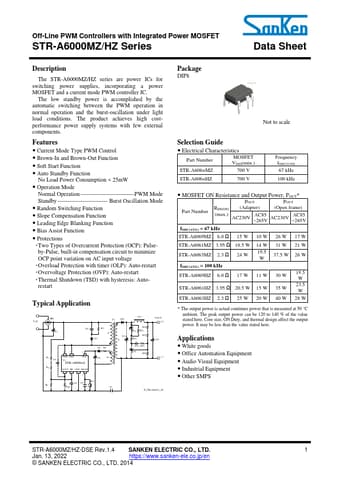

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR-A6063HZ, STR-A6069MZ
Manufacturer
Sanken ↗
File Size
580.75 KB
Datasheet
STR-A6069MZ-Sanken.pdf
Description
Off-Line PWM Controllers
Note
This datasheet PDF includes multiple part numbers: STR-A6063HZ, STR-A6069MZ.
Please refer to the document for exact specifications by model.
