STR-A6061HD, STR-A6000, Off-Line PWM Controllers

Off-Line PWM Controllers with Integrated Power MOSFET STR-A6000 Series Data Sheet General .
The STR-A6000 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

STR-A6000-Sanken.pdf

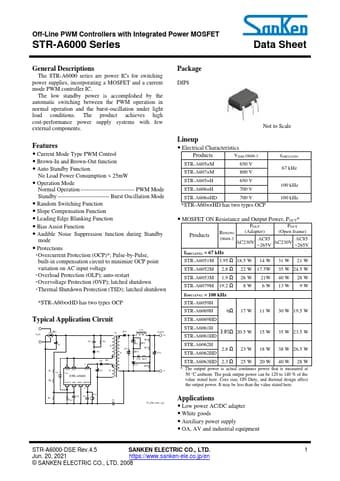

STR-A6061HD Datasheet Preview — This datasheet PDF includes multiple part numbers: STR-A6061HD, STR-A6000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STR-A6061HD, STR-A6000

Manufacturer:

Sanken ↗

File Size:

611.79 KB

Description:

Off-Line PWM Controllers

Note:

This datasheet PDF includes multiple part numbers: STR-A6061HD, STR-A6000.
Please refer to the document for exact specifications by model.

Features

* Current Mode Type PWM Control
* Brown-In and Brown-Out function
* Auto Standby Function No Load Power Consumption < 25mW
* Operation Mode Normal Operation

Applications

* Low power AC/DC adapter
* White goods
* Auxiliary power supply
* OA, AV and industrial equipment STR-A6000-DSE Rev.4.5 SANKEN ELECTRIC CO. , LTD. 1 Jun. 20, 2021 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 2008 STR-A6000 Series Contents General
