STR-A6063MZ - Off-Line PWM Controllers

Download the STR-A6063MZ datasheet PDF. This datasheet also covers the STR-A6069MZ variant, as both devices belong to the same off-line pwm controllers family and are provided as variant models within a single manufacturer datasheet.

Description

The STR-A6000MZ/HZ series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

Features

  • Current Mode Type PWM Control.
  • Brown-In and Brown-Out Function.
  • Soft Start Function.
  • Auto Standby Function No Load Power Consumption < 25mW.
  • Operation Mode Normal Operation ----------------------------PWM Mode Standby -------------------------- Burst Oscillation Mode.
  • Random Switching Function.
  • Slope Compensation Function.
  • Leading Edge Blanking Function.
  • Bias Assist Function.
  • Protections Two Types of Overc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STR-A6069MZ-Sanken.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STR-A6063MZ
Manufacturer Sanken
File Size 580.75 KB
Description Off-Line PWM Controllers
Datasheet download datasheet STR-A6063MZ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STR-A6061H Off-Line PWM Controllers Sanken Electric
STR-A6062H Off-Line PWM Controllers Sanken Electric
STR-A6069H Off-Line PWM Controllers Sanken Electric
STR-A6000H STR-A6000H Series PWM Off-Line Switching Regulator ICs Sanken Electric
STR-A6051M Current Mode Control PWM Regulator Allegro MicroSystems

Other Datasheets by Sanken

Part Number Description
STR-A6063HD Off-Line PWM Controllers
STR-A6063HZ Off-Line PWM Controllers
STR-A6061HD Off-Line PWM Controllers
STR-A6061HZ Off-Line PWM Controllers
STR-A6061MZ Off-Line PWM Controllers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

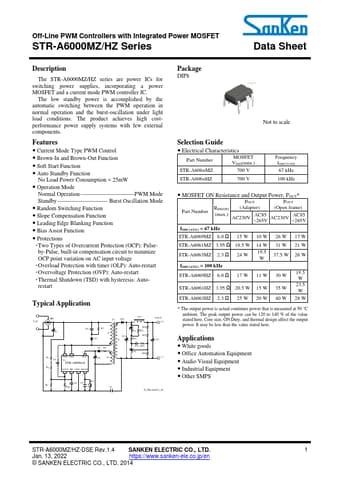

Off-Line PWM Controllers with Integrated Power MOSFET STR-A6000MZ/HZ Series Data Sheet Description The STR-A6000MZ/HZ series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC. The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions. The product achieves high costperformance power supply systems with few external components.
