DS065016C3 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

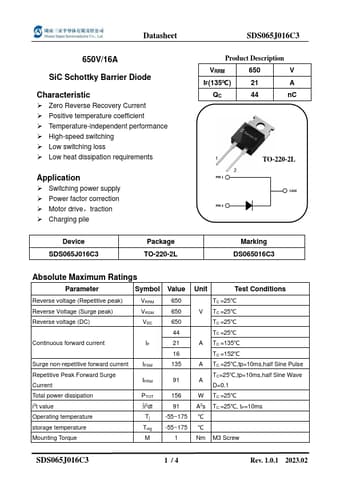

Datasheet preview – DS065016C3

Datasheet Details

Part number DS065016C3
Manufacturer Sanan
File Size 266.77 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065016C3 Datasheet
Additional preview pages of the DS065016C3 datasheet.

Product details

Description

VRRM 650 V IF(135℃) 21 A QC 44 nC TO-220-2L PIN 1 PIN 2 CASE Device SDS065J016C3 Package TO-220-2L Marking DS065016C3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 44 TC =25℃ Continuous forward current IF 21 A TC =135℃ 16 TC =152℃ Surge non-repetitive forward current IFSM 135 A TC =25℃,tp=10ms,half
