DS065004D3 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

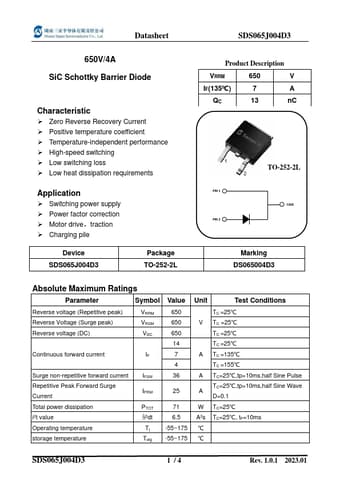

Datasheet preview – DS065004D3

Datasheet Details

Part number DS065004D3
Manufacturer Sanan
File Size 311.08 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065004D3 Datasheet
Additional preview pages of the DS065004D3 datasheet.

Product details

Description

VRRM 650 V IF(135℃) 7 A QC 13 nC TO-252-2L PIN 1 PIN 2 CASE Marking DS065004D3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 14 TC =25℃ Continuous forward current IF 7 A TC =135℃ 4 TC =155℃ Surge non-repetitive forward current IFSM 36 A TC=25℃,tp=10ms,half Sine Pulse Repetitive Peak Forward Surge Cu
