DS065006E3 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

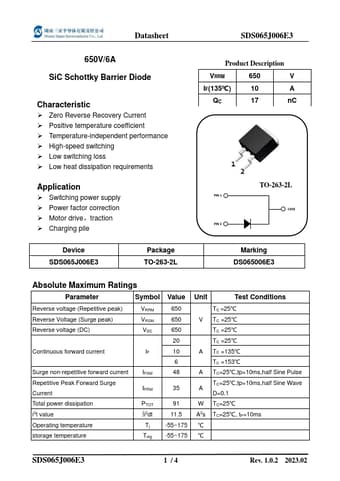

Datasheet preview – DS065006E3

Datasheet Details

Part number DS065006E3
Manufacturer Sanan
File Size 331.57 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065006E3 Datasheet
Additional preview pages of the DS065006E3 datasheet.

Product details

Description

VRRM 650 V IF(135℃) 10 A QC 17 nC TO-263-2L PIN 1 CASE PIN 2 Marking DS065006E3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 20 TC =25℃ Continuous forward current IF 10 A TC =135℃ 6 TC =153℃ Surge non-repetitive forward current IFSM 48 A TC=25℃,tp=10ms,half Sine Pulse Repetitive Peak Forward Surge Cur
