DS065010E2 - SiC Schottky Barrier Diode

Product Overview

📥 Download Datasheet

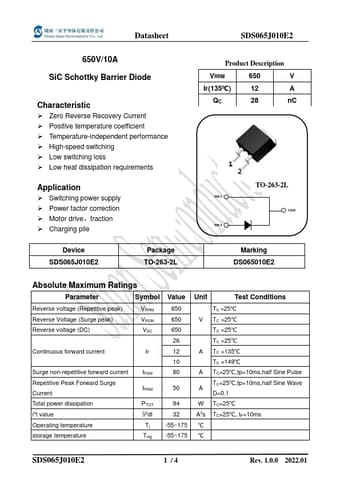

Datasheet preview – DS065010E2

Datasheet Details

Part number DS065010E2
Manufacturer Sanan
File Size 315.24 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065010E2 Datasheet
Additional preview pages of the DS065010E2 datasheet.

Product details

Description

VRRM 650 V IF(135℃) 12 A QC 28 nC TO-263-2L PIN 1 CASE PIN 2 Marking DS065010E2 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 26 TC =25℃ Continuous forward current IF 12 A TC =135℃ 10 TC =149℃ Surge non-repetitive forward current IFSM 80 A TC=25℃,tp=10ms,half Sine Pulse Repetitive Peak Forward Surge Cu
