LM561C - Middle Power LED

Name: LM561C
SKU: LM561C-1226894

Samsung

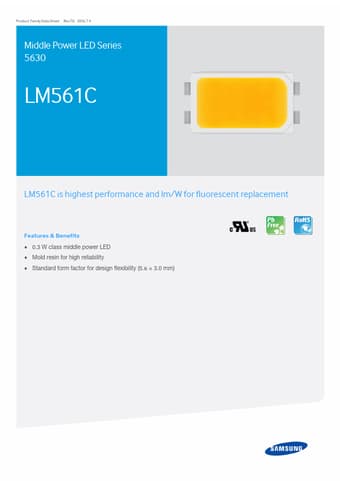

The LM561C by Samsung is a Middle Power LED. Below is the official datasheet preview.

Datasheet Details

Part number	LM561C
Manufacturer	Samsung
File Size	1.84 MB
Description	Middle Power LED
Datasheet	LM561C-Samsung.pdf
Additional preview pages of the LM561C datasheet.

& Benefits.
0.3 W class middle power LED.
Mold resin for high reliability.
Standard form factor for design flexibility (5.6 × 3.0 mm) 2 Table of Contents 1. Characteristics 2. Product Code Information 3. Typical Characteristics Graphs 4. Outline Drawing & Dimension 5. Reliability Test Items & Conditions 6. Soldering Conditions 7. Tape & Reel 8. Label Structure 9. Packing Structure 10. Precautions in Handling & Use ---------------------------------------------------.
