LM566C - LM566C Voltage Controlled Oscillator

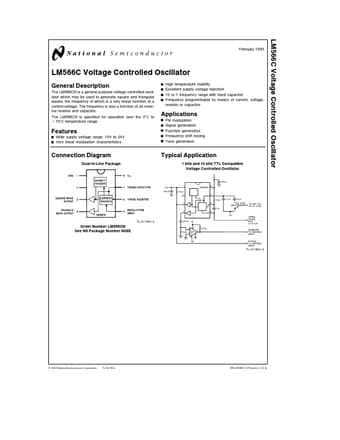

The LM566C by National Semiconductor is a LM566C Voltage Controlled Oscillator. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LM566C LM566C Voltage Controlled Oscillator datasheet (National Semiconductor).

LM566C Product details

Description

The LM566CN is a general purpose voltage controlled oscillator which may be used to generate square and triangular waves the frequency of which is a very linear function of a control voltage The frequency is also a function of an external resistor and capacitor The LM566CN is specified for operation over the 0 C to a 70 C temperature range Y Y Y Y High temperature stability Excellent supply voltage rejection 10 to 1 frequency range with fixed capacitor Frequency programmable by means of current
