LM5623-11, THREE DIGIT DISPLAY

Part No.

LN5623-11 EWRN LM5623-11 EWRN LN(M)5623-11 0.56" THREE DIGIT DISPLAY LED Chip Material Emitting Color Face Color Surface Segments GaP/GaP Green Grey White GaP/GaP Green Grey White Absolute Maximum Ratings at Ta=25 Parameter Symbol Rating Unit Power Dissipation Per Segmen

LEDTECH ELECTRONICS CORP.

NANYA ROAD,MUGANG ZHAOQING CITY GUANGDONG CHINA.

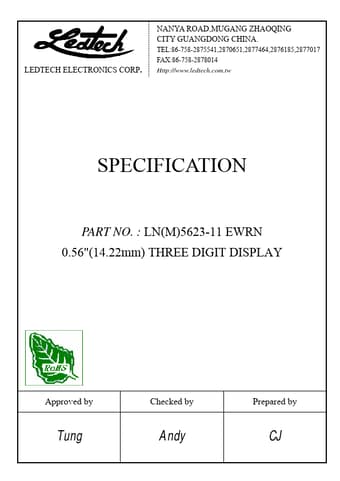

TEL:86-758-2875541,2870651,2877464,2876185,2877017 FAX:86-758-2878014 Http://www.ledtech.com.tw SPECIFICATION PART NO.

: LN(M)5623-11 EWRN 0.56"(14.22mm) THREE DIGIT DISPLAY Approved by Tung Checked by Andy Prepared by CJ Dimensions 12.7 14.22 LN(M)5623-11 0.56" THREE DIGIT DISPLAY 12.7 8° 8.0 0.5 DIA.

1.3 19.0 15.24 8.13 1.68 DIA.

37.7 MARK 3.5 MIN.

2.54X5=12.7 DIGIT 1 Notes: 1.

The slope angle of an
