K4S280432A, K4S-280432 128Mbit SDRAM 8M x 4Bit x 4 Banks Synchronous DRAM LVTTL

Samsung semiconductor

K4S280432A Description

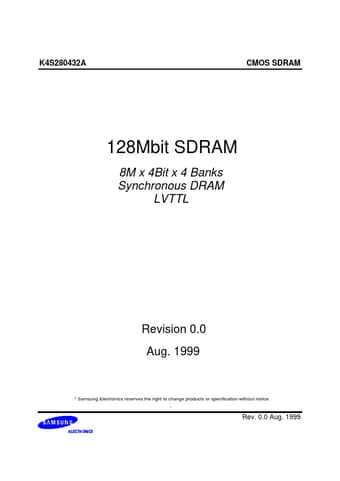

K4S280432A CMOS SDRAM 128Mbit SDRAM 8M x 4Bit x 4 Banks Synchronous DRAM LVTTL Revision 0.0 Aug.1999 * Samsung Electronics reserves the right.
The K4S280432A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 8,388,608 words by 4 bits, fabricated with SAMSUNG′s high p.

K4S280432A Features

* JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 Page ) -. Burst type (Sequential & Interleave) All inputs are sampled at the

K4S280432A Applications

* ORDERING INFORMATION Part No. K4S280432A-TC/L75 K4S280432A-TC/L80 K4S280432A-TC/L1H K4S280432A-TC/L1L K4S280432A-TC/L10 Max Freq. 133MHz(CL=3) 125MHz(CL=3) 100MHz(CL=2) 100MHz(CL=3) 66MHz(CL=2 &3) LVTTL 54 TSOP(II) Interface Package FUNCTIONAL BL

📥 Download Datasheet

K4S280432A Datasheet Preview — This datasheet PDF includes multiple part numbers: K4S280432A, K4S-280432. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: K4S280432A, K4S-280432
Manufacturer: Samsung semiconductor
File Size: 109.52 KB
Datasheet: K4S-280432-A.pdf
Description: 128Mbit SDRAM 8M x 4Bit x 4 Banks Synchronous DRAM LVTTL
Note: This datasheet PDF includes multiple part numbers: K4S280432A, K4S-280432.
Please refer to the document for exact specifications by model.
