K9LAG08U1M - (K9XXG08UXM) Flash Memory

General Description

Offered in 1Gx8bit, the K9G8G08U0M is a 8G-bit NAND Flash Memory with spare 256M-bit.

Its NAND cell provides the most costeffective solution for the solid state mass storage market.

Key Features

  • Voltage Supply : 2.7 V ~ 3.6 V.
  • Organization - Memory Cell Array : (1G + 32M)bit x 8bit - Data Register : (2K + 64)bit x8bit.
  • Automatic Program and Erase - Page Program : (2K + 64)Byte - Block Erase : (256K + 8K)Byte.
  • Page Read Operation - Page Size : (2K + 64)Byte - Random Read : 60µs(Max. ) - Serial Access : 30ns(Min. ).
  • Memory Cell : 2bit / Memory Cell.
  • Fast Write Cycle Time - Program time : 800µs(Typ. ) - Block Erase Time : 1.5ms(Typ. ).

📥 Download Datasheet

Datasheet Details

Part number K9LAG08U1M
Manufacturer Samsung Electronics
File Size 1.01 MB
Description (K9XXG08UXM) Flash Memory
Datasheet download datasheet K9LAG08U1M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K9LAG08U1A FLASH MEMORY Samsung
K9L8G08U1A Flash Memory Samsung
K9LBG08U0D 4G x 8 Bit/ 8G x 8 Bit/ 16G x 8 Bit NAND Flash Memory Samsung semiconductor
K9LBG08U0E 16Gb E-die NAND Flash Samsung
K9LBG08U1D FLASH MEMORY Samsung

Other Datasheets by Samsung Electronics

Part Number Description
K9LAG08U0M Flash Memory
K9LBG08U0M FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

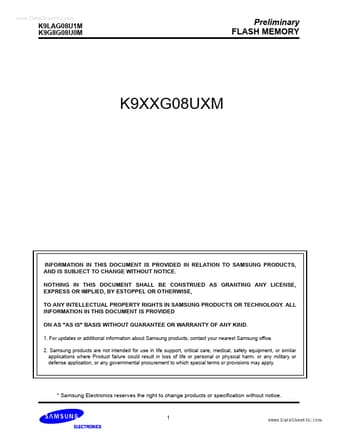

www.DataSheet4U.com K9LAG08U1M K9G8G08U0M Preliminary FLASH MEMORY K9XXG08UXM INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS, AND IS SUBJECT TO CHANGE WITHOUT NOTICE. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL INFORMATION IN THIS DOCUMENT IS PROVIDED ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY KIND. 1. For updates or additional information about Samsung products, contact your nearest Samsung office. 2.
