PCS2012, PCS1005 - High Power Thin Film Chip Terminator

📥 Download Datasheet

PCS2012 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCS2012, PCS1005. Please refer to the document for exact specifications by model.

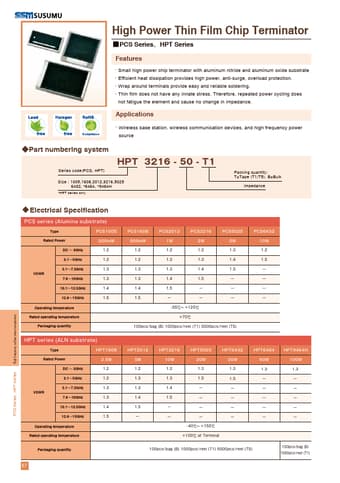

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PCS2012, PCS1005
Manufacturer	SUSUMU
File Size	242.11 KB
Description	High Power Thin Film Chip Terminator
Datasheet	PCS1005-SUSUMU.pdf
Note	This datasheet PDF includes multiple part numbers: PCS2012, PCS1005. Please refer to the document for exact specifications by model.

PCS2012 Product details

Features

Small high power chip terminator with aluminum nitride and aluminum oxide substrate Efficient heat dissipation provides high power, anti-surge, overload protection. Wrap around terminals provide easy and reliable soldering. Thin film does not have any innate stress. Therefore, repeated power cycling does not fatigue the element and cause no change in impedance.
