PCS6432, PCS1005 - High Power Thin Film Chip Terminator

The PCS6432 by SUSUMU is a High Power Thin Film Chip Terminator. Below is the official datasheet preview.

Datasheet Details

Part number	PCS6432, PCS1005
Manufacturer	SUSUMU
File Size	242.11 KB
Description	High Power Thin Film Chip Terminator
Datasheet	PCS1005-SUSUMU.pdf
Note	This datasheet PDF includes multiple part numbers: PCS6432, PCS1005. Please refer to the document for exact specifications by model.

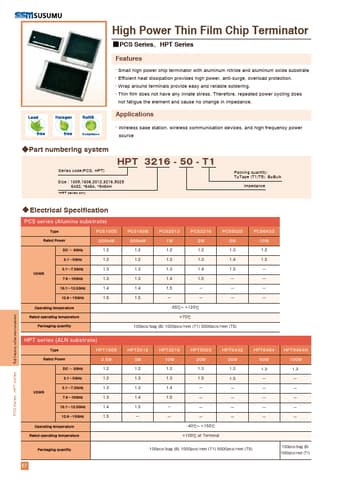

Additional preview pages of the PCS6432 datasheet.

Small high power chip terminator with aluminum nitride and aluminum oxide substrate Efficient heat dissipation provides high power, anti-surge, overload protection. Wrap around terminals provide easy and reliable soldering. Thin film does not have any innate stress. Therefore, repeated power cycling does not fatigue the element and cause no change in impedance.
