PCS24 - Three Phase Solid State Relay

Features

  • SCR Output (530V version), Triac Output (440V version).
  • LED Status Indicator.
  • Built-In Snubber.
  • Removable Finger Safe Cover Option OUTPUT.

📥 Download Datasheet

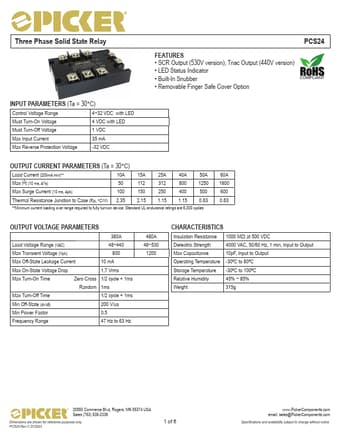

Datasheet preview – PCS24

Datasheet Details

Part number PCS24
Manufacturer Picker
File Size 693.44 KB
Description Three Phase Solid State Relay
Datasheet download datasheet PCS24 Datasheet

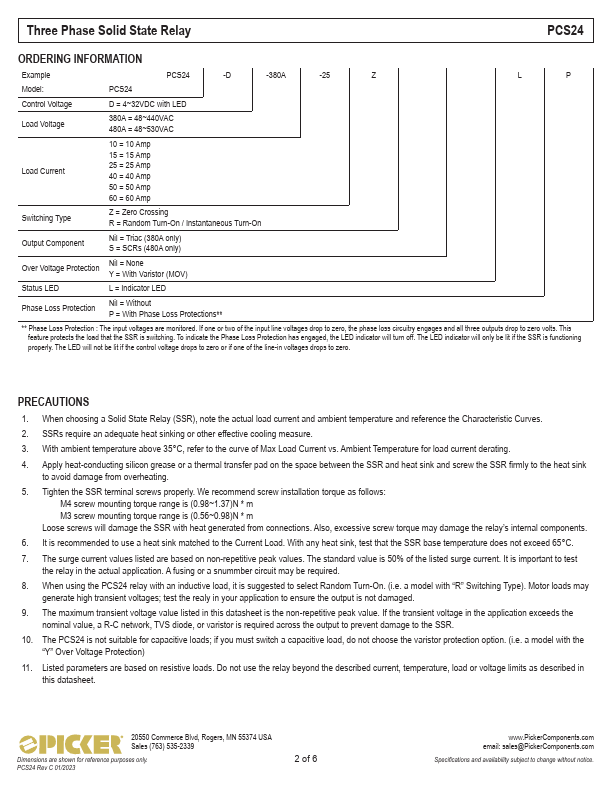

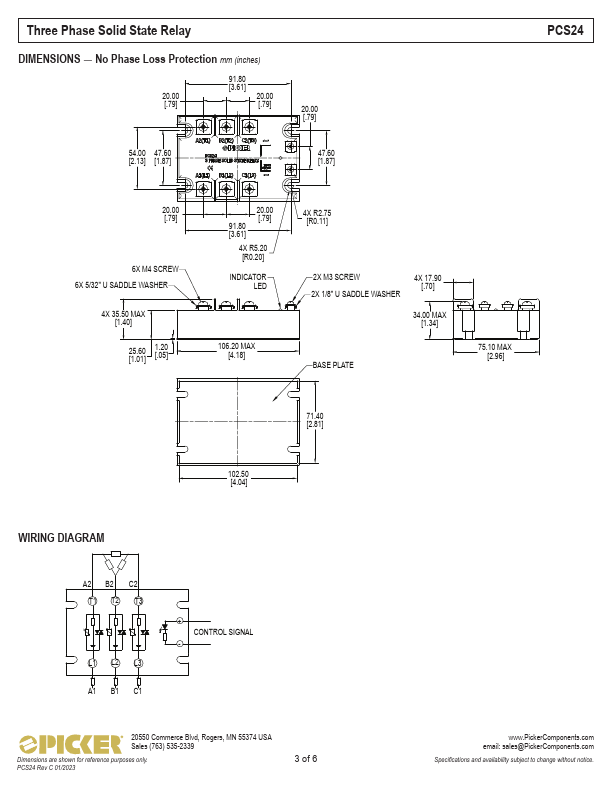

Additional preview pages of the PCS24 datasheet.

📁 Similar Datasheet

  • PCS2012 - High Power Thin Film Chip Terminator (SUSUMU)
  • PCS2D09 - Power Chip Shielded Inductors (Allied Components International)
  • PCS2D11 - Power Chip Shielded Inductors (Allied Components International)
  • PCS2D14 - Power Chip Shielded Inductors (Allied Components International)
  • PCS2P2309NZ - 3.3V 1:9 Clock Buffer (ON Semiconductor)
  • PCS-E20F - (PCS-ExxF) IDC Type and Solder Type FeMale Connector (Honda Connectors)
  • PCS-E20LMD - (PCS-ExxMD) Board-to-Cable Male Connector (Honda Connectors)
  • PCS-E20MD - (PCS-ExxMD) Board-to-Cable Male Connector (Honda Connectors)
  • PCS-E20PM - (PCS-ExxPM-H) IDC Type Male Panel Mounting Cable Connector (Honda Connectors)
  • PCS-E28F - (PCS-ExxF) IDC Type and Solder Type FeMale Connector (Honda Connectors)
Other Datasheets by Picker
  • PCS20 - Solid State Relay
  • PCS27 - Solid State Relay
  • PCS28 - Dual Solid State Relay
  • PCS15 - Solid State Relay
  • PCS32 - Solid State Relay
  • PCS33 - Solid State Relay
  • PCS34 - DC Input Solid State Relay
  • PCS34 - AC Input Solid State Relay

Full PDF Text Transcription

Click to expand full text

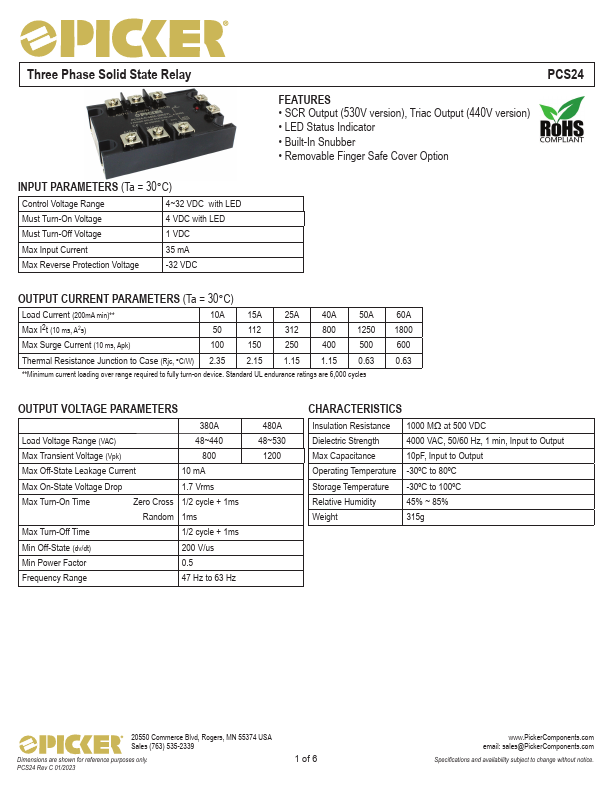

Three Phase Solid State Relay INPUT PARAMETERS (Ta = 30°C) Control Voltage Range 4~32 VDC with LED Must Turn-On Voltage 4 VDC with LED Must Turn-Off Voltage 1 VDC Max Input Current 35 mA Max Reverse Protection Voltage -32 VDC PCS24 FEATURES • SCR Output (530V version), Triac Output (440V version) • LED Status Indicator • Built-In Snubber • Removable Finger Safe Cover Option OUTPUT CURRENT PARAMETERS (Ta = 30°C) Load Current (200mA min)** 10A 15A 25A 40A 50A 60A Max I2t (10 ms, A2s) 50 112 312 800 1250 1800 Max Surge Current (10 ms, Apk) 100 150 250 400 500 600 Thermal Resistance Junction to Case (Rjc, °C/W) 2.35 2.15 1.15 1.15 0.63 0.63 **Minimum current loading over range required to fully turn-on device.
