TSL1020 20 + 1 channel buffers for TFT-LCD panels

TSL1020 Description

www.DataSheet4U.com TSL1020 20 + 1 channel buffer for TFT-LCD panels .
The TSL1020 is composed of 20 + 1 channel buffers which are used to buffer the reference voltage for gamma correction in thin film transistor (TFT) li.

TSL1020 Features

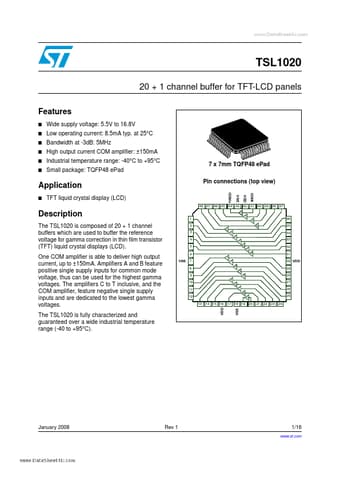

* Wide supply voltage: 5.5V to 16.8V Low operating current: 8.5mA typ. at 25°C Bandwidth at -3dB: 5MHz High output current COM amplifier: ±150mA Industrial temperature range: -40°C to +95°C Small package: TQFP48 ePad Pin connections (top view) COMo COMi VSS VDD 7
