TSL1014 14 + 1 channel buffers for TFT-LCD panels

TSL1014 Description

www.DataSheet4U.com TSL1014 14 + 1 channel buffers for TFT-LCD panels .
The TSL1014 is composed of 14 + 1 channel buffers which are used to buffer the reference voltage for gamma correction in thin film transistor (TFT) li.

TSL1014 Features

* Wide supply voltage: 5.5 V to 16.8 V Low operating current: 6 mA typical at 25° C Gain bandwidth product: 1 MHz High current com amplifier: ±100 mA output current Industrial temperature range: -40° C to +85° C Small package: TQFP48 Automotive qualification

📥 Download Datasheet

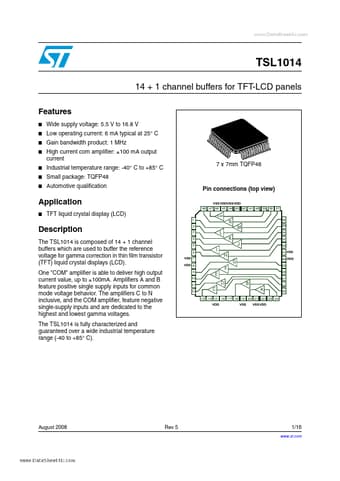

Preview of TSL1014 PDF
datasheet Preview Page 2 datasheet Preview Page 3
