TSL1018 18 + 1 channel buffers for TFT-LCD panels

TSL1018 Description

www.DataSheet4U.com TSL1018 18 + 1 channel buffer for TFT-LCD panels .
The TSL1018 is composed of 18 + 1 channel buffers which are used to buffer the reference voltage for gamma correction in thin film transistor (TFT) li.

TSL1018 Features

* Wide supply voltage: 5.5V to 16.8V Low operating current: 8mA typical at 25°C Bandwidth at -3dB: 3.5MHz High output current COM amplifier: ±150mA Industrial temperature range: -40°C to +95°C Small package: TQFP48 ePad Pin connections (top view) COMo COMi VDD VDD

📥 Download Datasheet

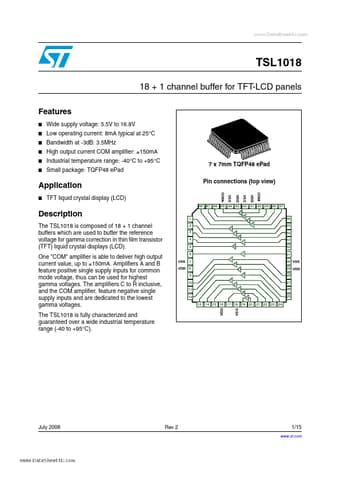

Preview of TSL1018 PDF
datasheet Preview Page 2 datasheet Preview Page 3
