STWA72N60DM2AG N-channel Power MOSFET

STWA72N60DM2AG Description

STWA72N60DM2AG Datasheet Automotive-grade N-channel 600 V, 37 mΩ typ., 66 A, MDmesh™ DM2 Power MOSFET in a TO-247 long leads package .
This high-voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fastrecovery diode series.

STWA72N60DM2AG Features

* Order code STWA72N60DM2AG VDS 600 V RDS(on) max. 42 mΩ ID 66 A PTOT 446 W D(2) G(1) S(3) AM01476v1_No_tab Product status link STWA72N60DM2AG Product summary Order code STWA72N60DM2AG Marking 72N60DM2 Package TO-247 long leads Packing Tube
* AEC-Q101 qualified
* Fast-

📥 Download Datasheet

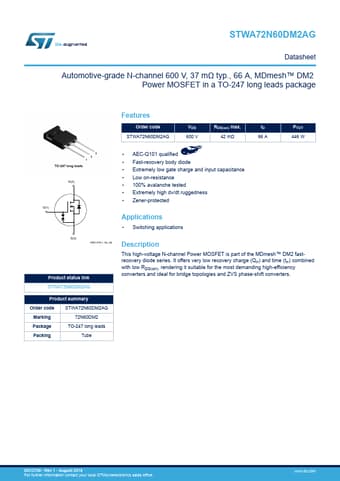

Preview of STWA72N60DM2AG PDF
datasheet Preview Page 2 datasheet Preview Page 3
