STWA45N65M5 N-Channel MOSFET

STWA45N65M5 Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STWA45N65M5 *.

STWA45N65M5 Features

* Excellent switching performance
* Higher VDSS rating
* 100 % Rg and UIS Tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STWA45N65M5 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 650 VGSS Gate-Source Voltage ±25 ID Drain Current-Continuous@TC=100℃ 22 IDM Drain Current-Single Pulsed 140 PD Total Dissipation 210 Tch Max. Operating Junction Tem

📥 Download Datasheet

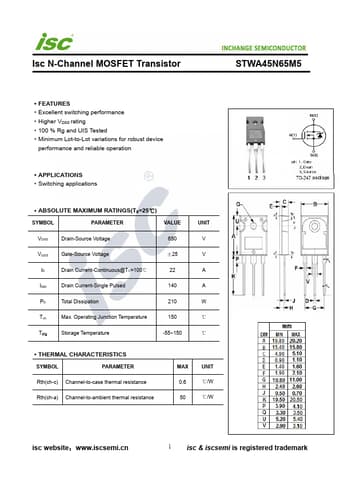

Preview of STWA45N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STWA45N65M5
Manufacturer
INCHANGE
File Size
207.10 KB
Datasheet
STWA45N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
