STWA70N60DM6, STW70N60DM6 N-CHANNEL Power MOSFET

STWA70N60DM6 Description

STW70N60DM6, STWA70N60DM6 Datasheet N-channel 600 V, 36 mΩ typ., 62 A, MDmesh DM6 Power MOSFETs in TO‑247 and TO‑247 long leads packages .
AM01476v1_tab These high-voltage N-channel Power MOSFETs are part of the MDmesh DM6 fast-recovery diode series.

STWA70N60DM6 Features

* 3 2 1 TO-247 3 2 1 TO-247 long leads D(2, TAB) Order code VDS RDS(on) max. STW70N60DM6 STWA70N60DM6 600 V 42 mΩ
* Fast-recovery body diode
* Lower RDS(on) per area vs previous generation
* Low gate charge, input capacitance and resistance
* 100% avalanche te

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STWA70N60DM6, STW70N60DM6. Please refer to the document for exact specifications by model.

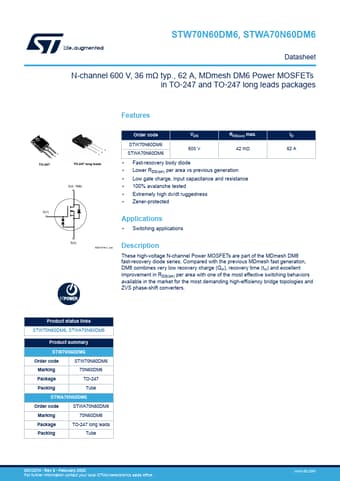

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STWA70N60DM6, STW70N60DM6
Manufacturer
STMicroelectronics ↗
File Size
344.33 KB
Datasheet
STW70N60DM6-STMicroelectronics.pdf
Description
N-CHANNEL Power MOSFET
Note
This datasheet PDF includes multiple part numbers: STWA70N60DM6, STW70N60DM6.
Please refer to the document for exact specifications by model.
