STW81100, MULTI-BAND RF FREQUENCY SYNTHESIZER

STW81100 MULTI-BAND RF FREQUENCY SYNTHESIZER WITH INTEGRATED VCOS DATASHEET 1 * * .
3. Applications Cellular 3G Infrastructure Equipment Other Wireless Communication Systems The STMicroelectronics STW81100 is an integrat.

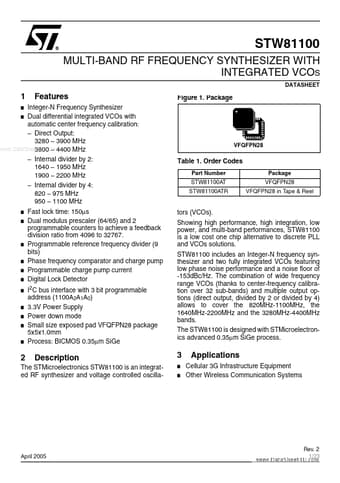

STW81100_STMicroelectronics.pdf

STW81100 Datasheet Preview — Preview of STW81100 PDF

Datasheet Details

Part number:

STW81100

Manufacturer:

STMicroelectronics ↗

File Size:

961.98 KB

Description:

MULTI-BAND RF FREQUENCY SYNTHESIZER

Features

* Figure 1. Package Integer-N Frequency Synthesizer Dual differential integrated VCOs with automatic center frequency calibration:
* Direct Output: 3280
* 3900 MHz www. DataSheet4U. com 3800
* 4400 MHz
* Internal divider by 2: 1640
* 1950 MHz 1900
* 2200

Applications

* Cellular 3G Infrastructure Equipment Other Wireless Communication Systems The STMicroelectronics STW81100 is an integrated RF synthesizer and voltage controlled oscilla- April 2005 Rev. 2 1/23 STW81100 Figure 2. Block Diagram O UT BUF P OUT BUF N V DD_ PLL V SS_ PLL REF_ IN REXT VDD_OUTBUF VSS_
