STW8NB100, N - CHANNEL 1000V - 1.2ohm- 8A - TO-247 PowerMESH MOSFET

® STW8NB100 N - CHANNEL 1000V - 1.2Ω - 8A - TO-247 PowerMESH™ MOSFET PRELIMINARY DATA TYPE STW8NB100 s s s s s s s V DSS 1000 V R DS(on) < 1.5 Ω .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STW8NB100_STMicroelectronics.pdf

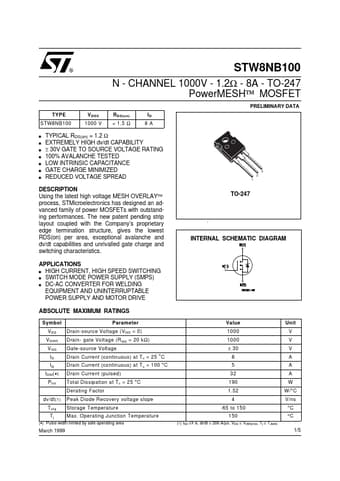

STW8NB100 Datasheet Preview — Preview of STW8NB100 PDF

Datasheet Details

Part number:

STW8NB100

Manufacturer:

STMicroelectronics ↗

File Size:

50.76 KB

Description:

N - CHANNEL 1000V - 1.2ohm- 8A - TO-247 PowerMESH MOSFET

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTER FOR WELDING EQUIPMENT AND UNINTERRUPTABLE POWER SUPPLY AND MOTOR DRIVE s INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS V DGR V GS ID ID IDM (
* ) P tot dv/dt(1) T stg Tj March 1999 Param
