STW80H150C SCHOTTKY RECTIFIER

STW80H150C Description

Technical Data Data Sheet N1897, Rev.A STW80H150C STW80H150C SCHOTTKY RECTIFIER TO-247AD Circuit Diagram .

STW80H150C Features

* 175 °C TJ operation
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Trench MOS Schottky t

STW80H150C Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(P

📥 Download Datasheet

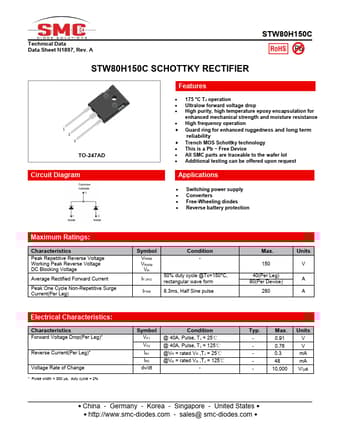

Preview of STW80H150C PDF
datasheet Preview Page 2 datasheet Preview Page 3
