STW15NK50Z N-CHANNEL Power MOSFET

STW15NK50Z Description

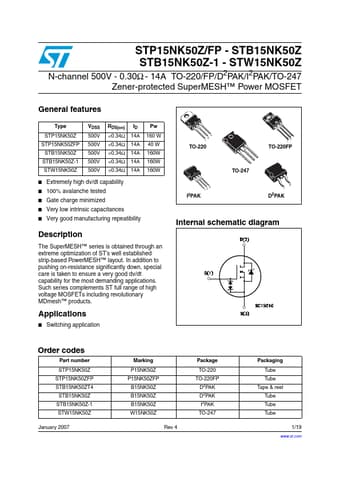

STP15NK50Z/FP - STB15NK50Z STB15NK50Z-1 - STW15NK50Z N-channel 500V - 0.30Ω - 14A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-protected SuperMESH™ Power MOSFET.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STW15NK50Z Features

* Type STP15NK50Z STP15NK50ZFP STB15NK50Z STB15NK50Z-1 STW15NK50Z VDSS 500V 500V 500V 500V 500V RDS(on) ID Pw

STW15NK50Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
* Switching application 3 2 1 TO-220 3 2 1 TO-220FP 123 I2PAK TO-247 3 1 D2PAK Internal schematic diagram Order codes Part number STP15NK50Z STP15NK50ZFP STB15NK50ZT4 STB1
