STV9429, STV9427 - (STV9427 - STV9429) HIGH SPEED MULTISYNCH ON-SCREEN DISPLAY

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STV9429, STV9427. Please refer to the document for exact specifications by model.

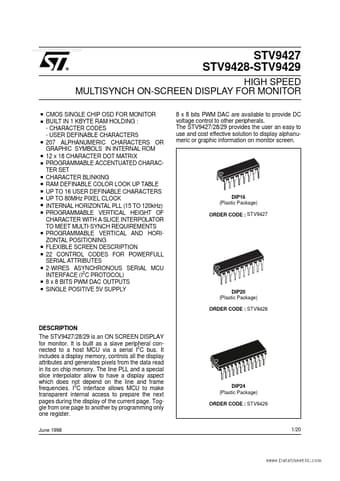

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number STV9429, STV9427
Manufacturer STMicroelectronics
File Size 391.62 KB
Description (STV9427 - STV9429) HIGH SPEED MULTISYNCH ON-SCREEN DISPLAY
Datasheet download datasheet STV9427_STMicroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: STV9429, STV9427.
Please refer to the document for exact specifications by model.

STV9429 Product details

Description

22 CONTROL CODES FOR POWERFULL SERIAL ATTRIBUTES 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL) 8 x 8 BITS PWM DAC OUTPUTS SINGLE POSITIVE 5V SUPPLY 8 x 8 bits PWM DAC are available to provide DC voltage control to other peripherals.The STV9427/28/29 provides the user an easy to use and cost effective solution to display alphanumeric or graphic information on monitor screen.DIP16 (Plastic Package) ORDER CODE : STV9427 DIP20 (Plastic Package) ORDER CODE : STV9428 DESCRIPTION The S
