STV9425 - (STV9425 / STV9426) MULTISYNC ON-SCREEN DISPLAY FOR MONITOR

The STV9425 by ST Microelectronics is a (STV9425 / STV9426) MULTISYNC ON-SCREEN DISPLAY FOR MONITOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the STV9425 (STV9425 / STV9426) MULTISYNC ON-SCREEN DISPLAY FOR MONITOR datasheet (ST Microelectronics).

Datasheet Details

Part number STV9425
Manufacturer STMicroelectronics
File Size 184.10 KB
Description (STV9425 / STV9426) MULTISYNC ON-SCREEN DISPLAY FOR MONITOR
Datasheet download datasheet STV9425_STMicroelectronics.pdf
Additional preview pages of the STV9425 datasheet.

STV9425 Product details

Description

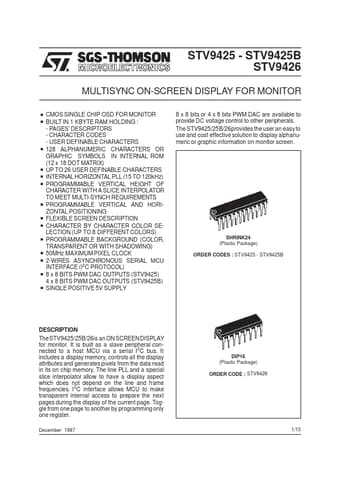

CHARACTER BY CHARACTER COLOR SELECTION (UP TO 8 DIFFERENT COLORS) PROGRAMMABLE BACKGROUND (COLOR, TRANSPARENT OR WITH SHADOWING) 50MHz MAXIMUM PIXEL CLOCK 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL) 8 x 8 BITS PWM DAC OUTPUTS (STV9425) 4 x 8 BITS PWM DAC OUTPUTS (STV9425B) SINGLE POSITIVE 5V SUPPLY 8 x 8 bits or 4 x 8 bits PWM DAC are available to provide DC voltage control to other peripherals.The STV9425/25B/26provides the user an easy to use and cost effective solution to displ
