STV9421, STV9420 - (STV9420 / STV9421) MULTISYNC ON-SCREEN DISPLAY

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STV9421, STV9420. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number STV9421, STV9420
Manufacturer STMicroelectronics
File Size 258.05 KB
Description (STV9420 / STV9421) MULTISYNC ON-SCREEN DISPLAY
Datasheet download datasheet STV9420_STMicroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: STV9421, STV9420.
Please refer to the document for exact specifications by model.

STV9421 Product details

Description

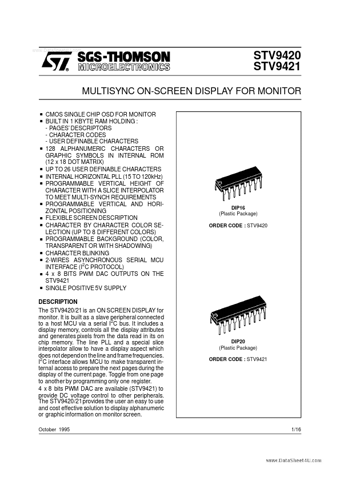

CHARACTER BY CHARACTER COLOR SELECTION (UP TO 8 DIFFERENT COLORS) PROGRAMMABLE BACKGROUND (COLOR, TRANSPARENT OR WITH SHADOWING) CHARACTER BLINKING 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL) 4 x 8 BITS PWM DAC OUTPUTS ON THE STV9421 SINGLE POSITIVE 5V SUPPLY DIP16 (Plastic Package) ORDER CODE : STV9420 DESCRIPTION The STV9420/21 is an ON SCREEN DISPLAY for monitor.It is built as a slave peripheral connected to a host MCU via a serial I2C bus.It includes a display memory, contro
