STTN6050H-12M1Y, 60A 1200V thyristor controlled bridge leg

STTN6050H-12M1Y Datasheet 60 A 1200 V thyristor controlled bridge leg in ACEPACK SMIT module .
The STTN6050H-12M1Y achieves a 1200 V 60 A full controlled SCR bridge leg in ACEPACK SMIT module, and it can control an AC current up to 85 ARMS when.

STTN6050H-12M1Y-STMicroelectronics.pdf

STTN6050H-12M1Y Datasheet Preview — Preview of STTN6050H-12M1Y PDF

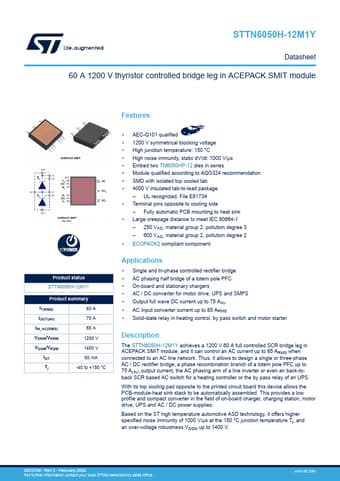

STTN6050H-12M1Y Datasheet Preview Page 2

STTN6050H-12M1Y Datasheet Preview Page 3

Datasheet Details

Part number:

STTN6050H-12M1Y

Manufacturer:

STMicroelectronics ↗

File Size:

643.94 KB

Description:

60A 1200V thyristor controlled bridge leg

Features

* Product status STTN6050H-12M1Y Product summary IT(RMS) 60 A IOUT(AV) 75 A IIN_AC(RMS) 85 A VDRM/VRRM 1200 V VDSM/VRSM 1400 V IGT 50 mA Tj -40 to +150 °C
* AEC-Q101 qualified
* 1200 V symmetrical blocking voltage
* High junction temperature: 150 °C
* H

Applications

* Single and tri-phase controlled rectifier bridge
* AC phasing half bridge of a totem pole PFC
* On-board and stationary chargers
* AC / DC converter for motor drive, UPS and SMPS
* Output full wave DC current up to 75 AAV
* AC Input converter current
