STS7NF60L N-CHANNEL POWER MOSFET

STS7NF60L Description

N-CHANNEL 60V - 0.017 Ω - 7.5A SO-8 STripFET™ II POWER MOSFET TYPE STS7NF60L www.DataSheet4U.com s TYPICAL s STS7NF60L VDSS 60 V RDS(on) < 0.0195 Ω.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STS7NF60L Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot EAS (1) April 2002 . Parameter Drain-source Voltage (VGS = 0) Drain-gate

📥 Download Datasheet

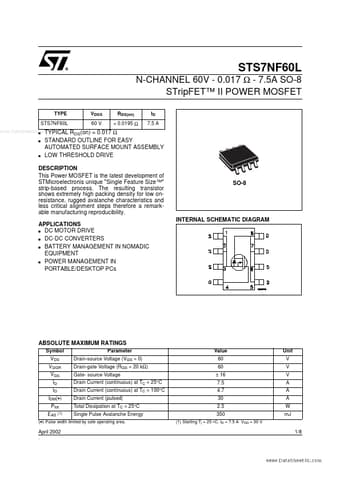

Preview of STS7NF60L PDF
