STS7NF30L N-CHANNEL POWER MOSFET

STS7NF30L Description

® STS7NF30L N - CHANNEL 30V - 0.021Ω - 7A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS7NF30L www.DataSheet4U.com s TYPICAL s V DSS 30 V R.
This Power MOSFET is the second generation of STMicroelectronics unique " Single Feature Size™ " strip-based process.

STS7NF30L Applications

* DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs s SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source Volt

📥 Download Datasheet

Preview of STS7NF30L PDF

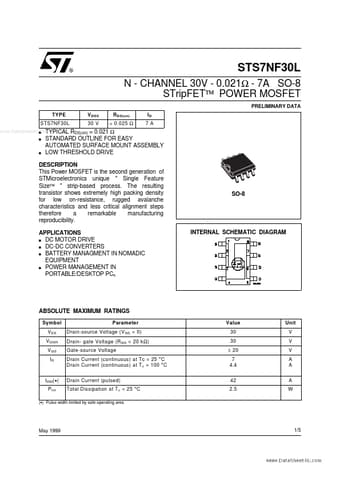

datasheet Preview Page 2 datasheet Preview Page 3
