STPS40M60C, power Schottky rectifier

STPS40M60C High efficiency 60 V power Schottky rectifier .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

STPS40M60C-STMicroelectronics.pdf

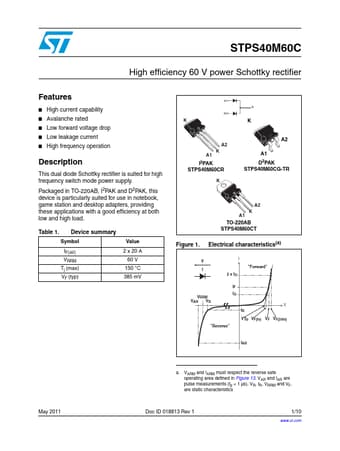

STPS40M60C Datasheet Preview — Preview of STPS40M60C PDF

Datasheet Details

Part number:

STPS40M60C

Manufacturer:

STMicroelectronics ↗

File Size:

125.60 KB

Description:

power Schottky rectifier

Features

* High current capability
* Avalanche rated
* Low forward voltage drop
* Low leakage current

Applications

* with a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (typ) Value 2 x 20 A 60 V 150 °C 385 mV A1 A2 K A2 K A1 I2PAK STPS40M60CR K K K A2 A1 D2PAK STPS40M60CG-TR A2 K A1 TO-220AB STPS40M60CT Figure 1. Electrical characteristics(a) V I "Forwa
