STPS40L45CW - SCHOTTKY RECTIFIER

Features

  • The STPS40L45CW center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical.

📥 Download Datasheet

📁 Similar Datasheet

  • STPS40L45CW - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS40L45C - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS40L45CG - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS40L45CG - Schottky Barrier Rectifier (INCHANGE)
  • STPS40L45CT - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS40L40CT - (STPS40L40CT/CW) LOW DROP POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS40L40CW - (STPS40L40CT/CW) LOW DROP POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS40L15C - Low drop OR-ing power Schottky diode (STMicroelectronics)
  • STPS40L15CT - (STPS40L15CT/CW) LOW DROP OR-ing POWER SCHOTTKY DIODE (STMicroelectronics)
  • STPS40L15CW - (STPS40L15CT/CW) LOW DROP OR-ing POWER SCHOTTKY DIODE (STMicroelectronics)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

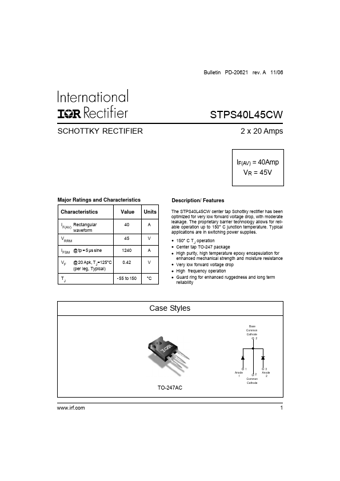

Bulletin PD-20621 rev. A 11/06 SCHOTTKY RECTIFIER STPS40L45CW 2 x 20 Amps IF(AV) = 40Amp VR = 45V Major Ratings and Characteristics Characteristics Value Units IF(AV) Rectangular waveform VRRM 40 45 IFSM @ tp = 5 μs sine 1240 VF @ 20 Apk, TJ=125°C (per leg, Typical) 0.42 TJ - 55 to 150 A V A V °C Description/ Features The STPS40L45CW center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies.
