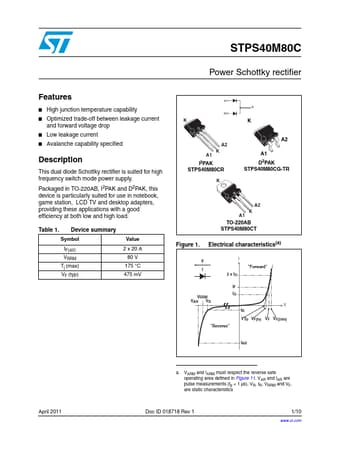

STPS40M80C
Power Schottky rectifier
Features
■ High junction temperature capability ■ Optimized trade-off between leakage current
and forward voltage drop ■ Low leakage current ■ Avalanche capability specified
Description
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.
Packaged in TO-220AB, I2PAK and D2PAK, this device is particularly suited for use in notebook, game station, LCD TV and desktop adapters, providing these applications with a good efficiency at both low and high load.
Table 1. Device summary
Symbol
IF(AV) VRRM Tj (max) VF (typ)
Value 2 x 20 A
80 V 175 °C 475 mV
A1
A2
K
A2 K A1 I2PAK STPS40M80CR K
K
K
A2
A1 D2PAK STPS40M80CG-TR
A2 K A1 TO-220AB STPS40M80CT
Figure 1.
