STPS40L15CW, STPS40L15CT (STPS40L15CT/CW) LOW DROP OR-ing POWER SCHOTTKY DIODE

STPS40L15CW Description

® STPS40L15CW/CT LOW DROP OR-ing POWER SCHOTTKY DIODE MAJOR PRODUCT CHARACTERISTICS A1 IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 15 V 150°C 0.33 V A2.
Dual center tap schottky rectifier packaged in TO-220AB and TO-247, this device is especially intended for use as OR-ing diode in fault tolerant power.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS40L15CW, STPS40L15CT. Please refer to the document for exact specifications by model.

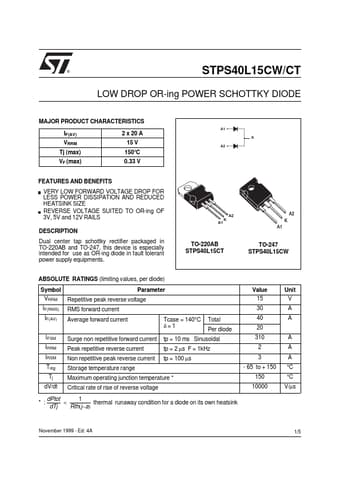

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS40L15CW, STPS40L15CT
Manufacturer
STMicroelectronics ↗
File Size
62.95 KB
Datasheet
STPS40L15CT_STMicroelectronics.pdf
Description
(STPS40L15CT/CW) LOW DROP OR-ing POWER SCHOTTKY DIODE
Note
This datasheet PDF includes multiple part numbers: STPS40L15CW, STPS40L15CT.
Please refer to the document for exact specifications by model.
