STPS40L15CT (STPS40L15CT/CW) LOW DROP OR-ing POWER SCHOTTKY DIODE

STPS40L15CT Description

® STPS40L15CW/CT LOW DROP OR-ing POWER SCHOTTKY DIODE MAJOR PRODUCT CHARACTERISTICS A1 IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 15 V 150°C 0.33 V A2.
Dual center tap schottky rectifier packaged in TO-220AB and TO-247, this device is especially intended for use as OR-ing diode in fault tolerant power.

📥 Download Datasheet

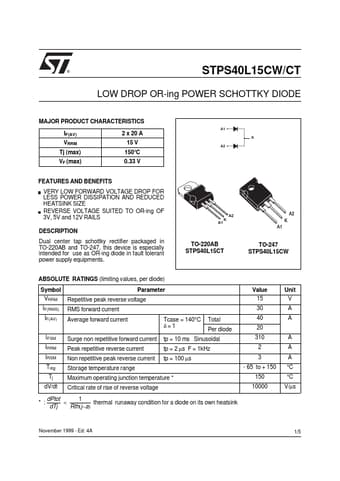

Preview of STPS40L15CT PDF
datasheet Preview Page 2 datasheet Preview Page 3
