STPS4045C-Y - Automotive power Schottky rectifiers

STPS4045C-Y Description

A1 K A2 A2 K A1 TO-247 STPS4045CWY .
This dual center tap Schottky rectifier is suited for switch mode power supply and high frequency DC to DC converters.

STPS4045C-Y Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* Avalanche capability specified

STPS4045C-Y Applications

* Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 45 V 175 °C 0.63 V December 2013 This is information on a product in full production. DocID17952 Rev 1 1/8 www. st. com Characteristics 1 Characteristics STPS4045C-Y Table 2. Absolute ratings (limiting values, per

📥 Download Datasheet

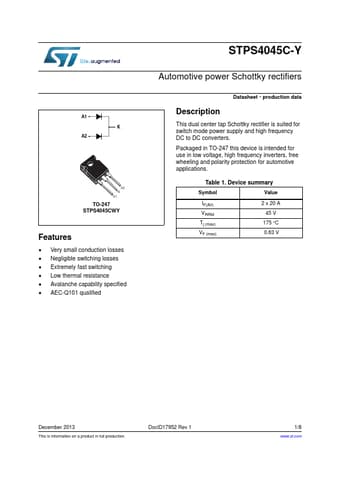

Preview of STPS4045C-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
