STPS4045C - Power Schottky rectifiers

Description

This dual center tap Schottky rectifier is suited for switchmode power supply and high frequency DC to DC converters.

Packaged in TO-247 or TO-220AB this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Features

  • Very small conduction losses.
  • Negligible switching losses.
  • Extremely fast switching.
  • Low thermal resistance.
  • Avalanche capability specified.

📥 Download Datasheet

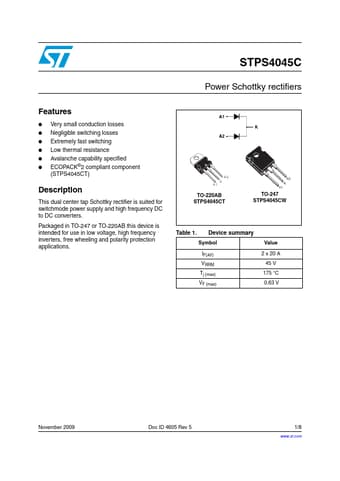

Datasheet preview – STPS4045C
