STPS30SM60SG, STPS30SM60S, Power Schottky rectifier

STPS30SM60S Power Schottky rectifier .
The STPS30SM60S is a single Schottky diode, suited for high frequency switch mode power supply.

STPS30SM60S-STMicroelectronics.pdf

STPS30SM60SG Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS30SM60SG, STPS30SM60S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS30SM60SG, STPS30SM60S

Manufacturer:

STMicroelectronics ↗

File Size:

171.33 KB

Description:

Power Schottky rectifier

Note:

This datasheet PDF includes multiple part numbers: STPS30SM60SG, STPS30SM60S.
Please refer to the document for exact specifications by model.

Features

* High current capability
* Avalanche rated
* Low forward voltage drop

Applications

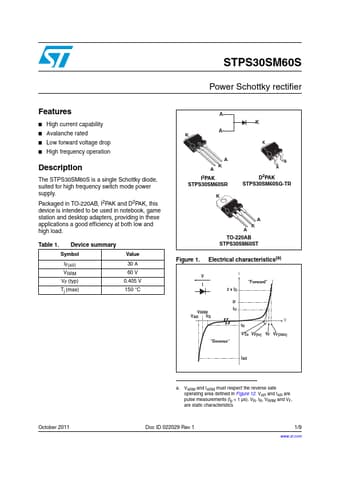

* a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM VF (typ) Tj (max) Value 30 A 60 V 0.405 V 150 °C A A K A K A I2PAK STPS30SM60SR K K K A A D2PAK STPS30SM60SG-TR A K A TO-220AB STPS30SM60ST Figure 1. Electrical characteristics(a) V I "Forward" I 2 x IO
