STPS30SM60S - Power Schottky rectifier

Description

The STPS30SM60S is a single Schottky diode, suited for high frequency switch mode power supply.

Packaged in TO-220AB, I2PAK and D2PAK, this device is intended to be used in notebook, game station and desktop adapters, providing in these applications a good efficiency at both low and high load.

Features

  • High current capability.
  • Avalanche rated.
  • Low forward voltage drop.
  • High frequency operation.

📥 Download Datasheet

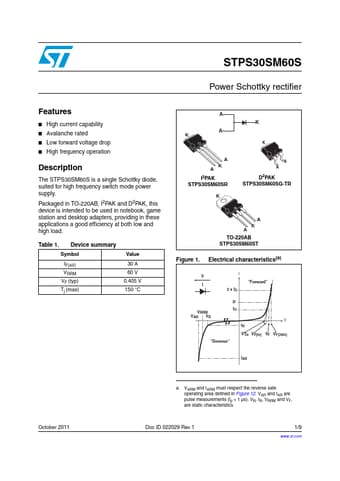

Datasheet preview – STPS30SM60S

Datasheet Details

Part number STPS30SM60S
Manufacturer STMicroelectronics
File Size 171.33 KB
Description Power Schottky rectifier
Datasheet download datasheet STPS30SM60S Datasheet
Additional preview pages of the STPS30SM60S datasheet.

📁 Similar Datasheet

  • STPS30SM100S - Power Schottky rectifier (ST Microelectronics)
  • STPS30100ST - 100V Power Schottky Rectifier (ST Microelectronics)
  • STPS30120C - Power Schottky Rectifier (ST Microelectronics)
  • STPS30120DJF - Low drop power Schottky rectifier (ST Microelectronics)
  • STPS30150C - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CT - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CT - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CW - High voltage power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STPS30SM60S Power Schottky rectifier Features ■ High current capability ■ Avalanche rated ■ Low forward voltage drop ■ High frequency operation Description The STPS30SM60S is a single Schottky diode, suited for high frequency switch mode power supply. Packaged in TO-220AB, I2PAK and D2PAK, this device is intended to be used in notebook, game station and desktop adapters, providing in these applications a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM VF (typ) Tj (max) Value 30 A 60 V 0.405 V 150 °C A A K A K A I2PAK STPS30SM60SR K K K A A D2PAK STPS30SM60SG-TR A K A TO-220AB STPS30SM60ST Figure 1. Electrical characteristics(a) V I "Forward" I 2 x IO X VRRM VAR VR IF IO IR X V "Reverse" VTo VF(Io) VF VF(2xIo) IAR October 2011 a.
