STPS20L45CFP, STPS20L45C Low drop power Schottky rectifier

STPS20L45CFP Description

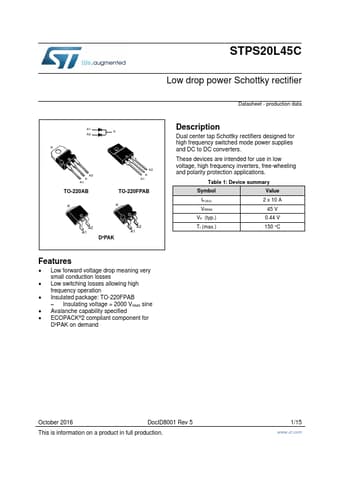

STPS20L45C Low drop power Schottky rectifier Datasheet - production data A1 K A2 K A2 K A1 TO-220AB K A2 K A1 TO-220FPAB K A2 A1 D²PAK A2 A1 D.
Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters.

STPS20L45CFP Features

* Low forward voltage drop meaning very small conduction losses
* Low switching losses allowing high frequency operation
* Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine
* Avalanche capability specified
* ECOPACK®2 compliant component for D²PAK on demand Oct

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20L45CFP, STPS20L45C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20L45CFP, STPS20L45C
Manufacturer
STMicroelectronics ↗
File Size
517.86 KB
Datasheet
STPS20L45C-STMicroelectronics.pdf
Description
Low drop power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS20L45CFP, STPS20L45C.
Please refer to the document for exact specifications by model.
