STPS16H100CFP, STPS16H100CT HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS16H100CFP Description

® STPS16H100CT/CG/CFP/CR HIGH VOLTAGE POWER SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS A1 IF(AV) VRRM Tj (max) VF (max) .
Dual center tap Schottky rectifier designed for high frequency miniature Switch Mode Power Supplies such as adaptators and on board DC/DC converters.

STPS16H100CFP Features

* s 2x8A 100 V 175 °C 0.64 V A2 K K A2 s s s s NEGLIGIBLE SWITCHING LOSSES HIGH JUNCTION TEMPERATURE CAPABILITY LOW LEAKAGE CURRENT GOOD TRADE OFF BETWEEN LEAKAGE CURRENT AND FORWARD VOLTAGE DROP AVALANCHE CAPABILITY SPECIFIED K A1 A2 A1 TO-220AB STPS16H100CT D2PAK STPS16H100CG DESCRIPT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS16H100CFP, STPS16H100CT. Please refer to the document for exact specifications by model.

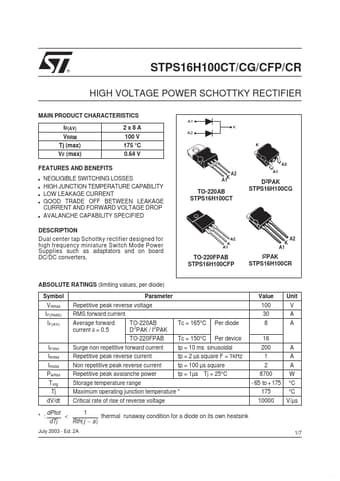

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS16H100CFP, STPS16H100CT
Manufacturer
STMicroelectronics ↗
File Size
97.77 KB
Datasheet
STPS16H100CT-STMicroelectronics.pdf
Description
HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS16H100CFP, STPS16H100CT.
Please refer to the document for exact specifications by model.
