STP31N65M5 N-Channel Power MOSFET

STP31N65M5 Description

STB31N65M5, STF31N65M5 STP31N65M5, STW31N65M5 Datasheet N-channel 650 V, 0.124 Ω, 22 A, MDmesh M5 Power MOSFETs in D2PAK, TO‑220FP, TO‑220 and TO-247 .
AM01475v1_noZen These devices are N-channel Power MOSFETs based on the MDmesh M5 innovative vertical process technology combined with the well-known.

STP31N65M5 Features

* Order code VDS @ TJMAX RDS(on ) max. STB31N65M5 STF31N65M5 STP31N65M5 710 V 0.148 Ω STW31N65M5
* Extremely low RDS(on)
* Low gate charge and input capacitance
* Excellent switching performance
* 100% avalanche tested ID 22 A Package D2PAK TO-220FP TO-220 TO

📥 Download Datasheet

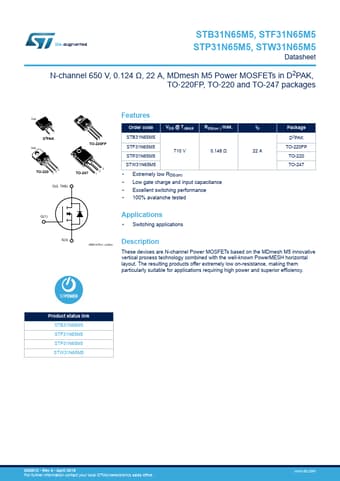

Preview of STP31N65M5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
