STL8P2UH7 - P-CHANNEL POWER MOSFET

STL8P2UH7 Description

STL8P2UH7 P-channel 20 V, 0.0195 Ω typ., 8 A STripFET™ VII DeepGATE™ Power MOSFET in a PowerFLAT™ 2x2 package Datasheet - production data 1 2 3 1 2.
This device exhibits low on-state resistance and capacitance for improved conduction and switching performance.

STL8P2UH7 Features

* Order code STL8P2UH7 VDS 20 V RDS(on)max 0.0225 Ω @ 4.5 V ID 8A
* Extremely low on-resistance R DS(on)

📥 Download Datasheet

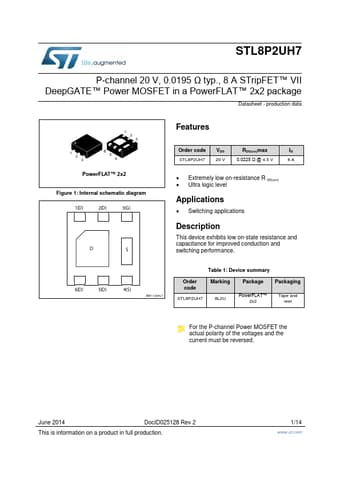

Preview of STL8P2UH7 PDF
datasheet Preview Page 2 datasheet Preview Page 3
