STL86N3LLH6AG N-channel MOSFET

STL86N3LLH6AG Description

STL86N3LLH6AG Datasheet Automotive-grade N-channel 30 V, 4 mΩ typ., 80 A STripFET™ H6 Power MOSFET in a PowerFLAT™ 5x6 package .
This device is an N-channel Power MOSFET developed using the STripFET™ H6 technology with a new trench gate structure.

STL86N3LLH6AG Features

* Order code VDS RDS(on) max. ID STL86N3LLH6AG 30 V 4 3 2 1 PowerFLAT™ 5x6 D(5, 6, 7, 8) 8 76 5
* AEC-Q101 qualified
* Very low on-resistance
* Very low gate charge
* High avalanche ruggedness
* Low gate drive power loss
* Logic level

STL86N3LLH6AG Applications

* 5.2 mΩ 80 A 12 34

📥 Download Datasheet

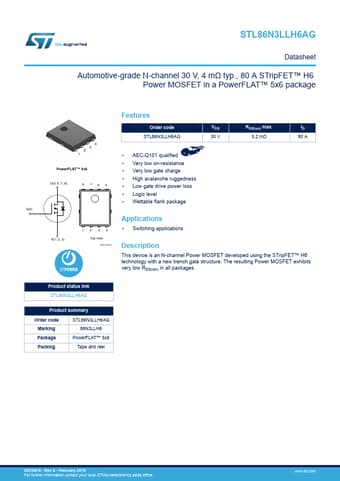

Preview of STL86N3LLH6AG PDF
