STL285N4F7AG - N-channel Power MOSFET

STL285N4F7AG Description

STL285N4F7AG Automotive-grade N-channel 40 V, 0.9 mΩ typ., 120 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package Datasheet - production data F.
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STL285N4F7AG Features

* Order code STL285N4F7AG VDS 40 V RDS(on) max 1.1 mΩ ID 120 A

STL285N4F7AG Applications

* and AEC-Q101 qualified
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity
* High avalanche ruggedness
* Wettable flank package Applications

📥 Download Datasheet

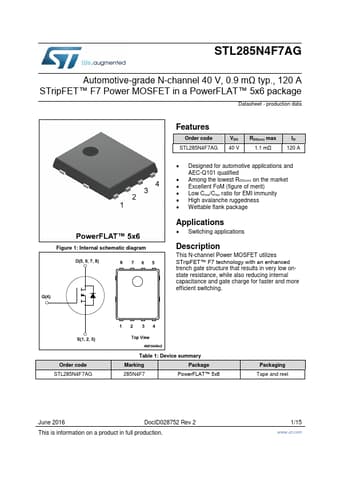

Preview of STL285N4F7AG PDF
