STL24NM60N - N-channel Power MOSFET

STL24NM60N Description

www.DataSheet.co.kr STL24NM60N N-channel 600 V, 0.200 Ω , 16 A PowerFLAT™ 8x8 HV MDmesh™ II Power MOSFET .
This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

STL24NM60N Features

* Type STL24NM60N VDSS @ TJmax 650 V RDS(on) max < 0.215 Ω ID 16 A (1) ' $ 3 3 3 "OTTOMVIEW 1. The value is rated according to Rthj-case

📥 Download Datasheet

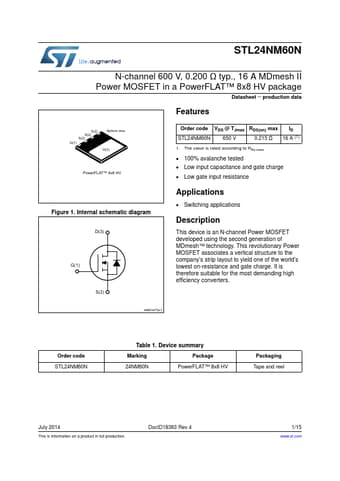

Preview of STL24NM60N PDF
datasheet Preview Page 2 datasheet Preview Page 3
