STL220NS6F7 N-CHANNEL POWER MOSFET

STL220NS6F7 Description

STL220NS6F7 N-channel 60 V, 1.4 mΩ typ., 250 A STripFET™ F7 Power MOSFET plus monolithic Schottky in a PowerFLAT™ 5x6 packageDatasheet - preliminary .
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STL220NS6F7 Features

* Order code STL220NS6F7 VDS 60 V RDS(on) max 1.6 mΩ ID 250 A
* Among the lowest RDS(on) on the market
* Excellent figure of merit (FoM)
* Embedded Schottky diode
* Low Crss/Ciss ratio for EMI immunity

📥 Download Datasheet

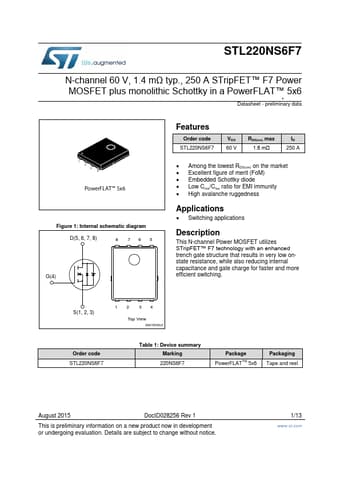

Preview of STL220NS6F7 PDF
