STL130N8F7 - N-channel Power MOSFET

STL130N8F7 Description

STL130N8F7 Datasheet N-channel 80 V, 3.0 mΩ typ., 120 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package .
S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results.

STL130N8F7 Features

* PowerFLAT 5x6 Order code VDS RDS(on) max. STL130N8F7 80 V 3.6 mΩ
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity
* High avalanche ruggedness ID 120 A PTOT 135 W D(5, 6, 7, 8) 8 76 5 Applica

📥 Download Datasheet

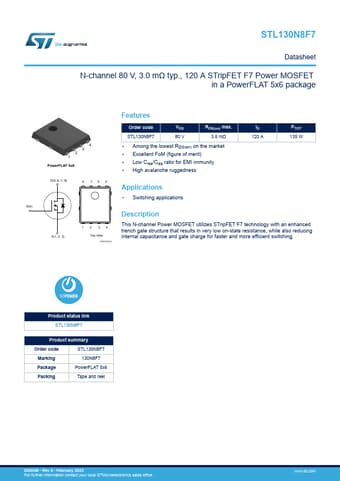

Preview of STL130N8F7 PDF
