STL130N6F7 - N-channel Power MOSFET

STL130N6F7 Description

STL130N6F7 Datasheet N-channel 60 V, 0.003 Ω typ., 130 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package .
S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results.

STL130N6F7 Features

* PowerFLAT 5x6 Order code VDS RDS(on) max. STL130N6F7 60 V 0.0035 Ω
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity

📥 Download Datasheet

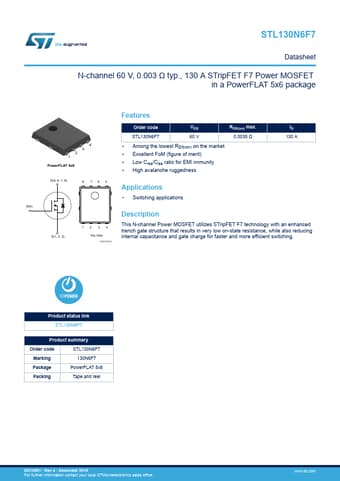

Preview of STL130N6F7 PDF
datasheet Preview Page 2 datasheet Preview Page 3
